carb spacer plate
carb spacer plate
Could anyone post a clear picture of the underside of the carburetor spacer plate from a 1980 12A? I unwittingly removed those permanent gaskets during my carb rebuild and I don't think the kit supplied me with the correct one. The gasket for the top of the plate seems correct, but the bottom gasket's holes don't line up with either the manifold or plate. Next time I'll take more pictures during my tear downs. Thanks.
-
spirit r
- VIP User
- Posts: 1895
- Joined: Sat Feb 09, 2013 4:15 pm
- Location: Germany Black Forest
- Has thanked: 476 times
- Been thanked: 253 times
- Contact:
Re: carb spacer plate
- SV100348.JPG (173.78 KiB) Viewed 2035 times

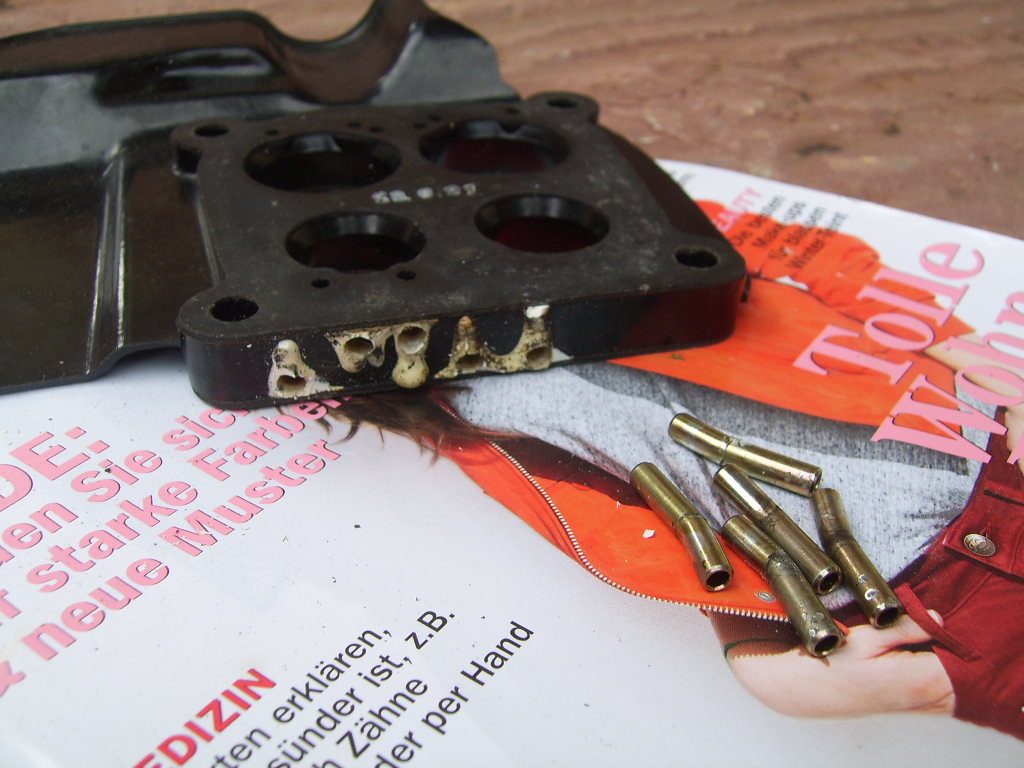

- SV100343.JPG (174.15 KiB) Viewed 2035 times
Thomas
- Attachments
-

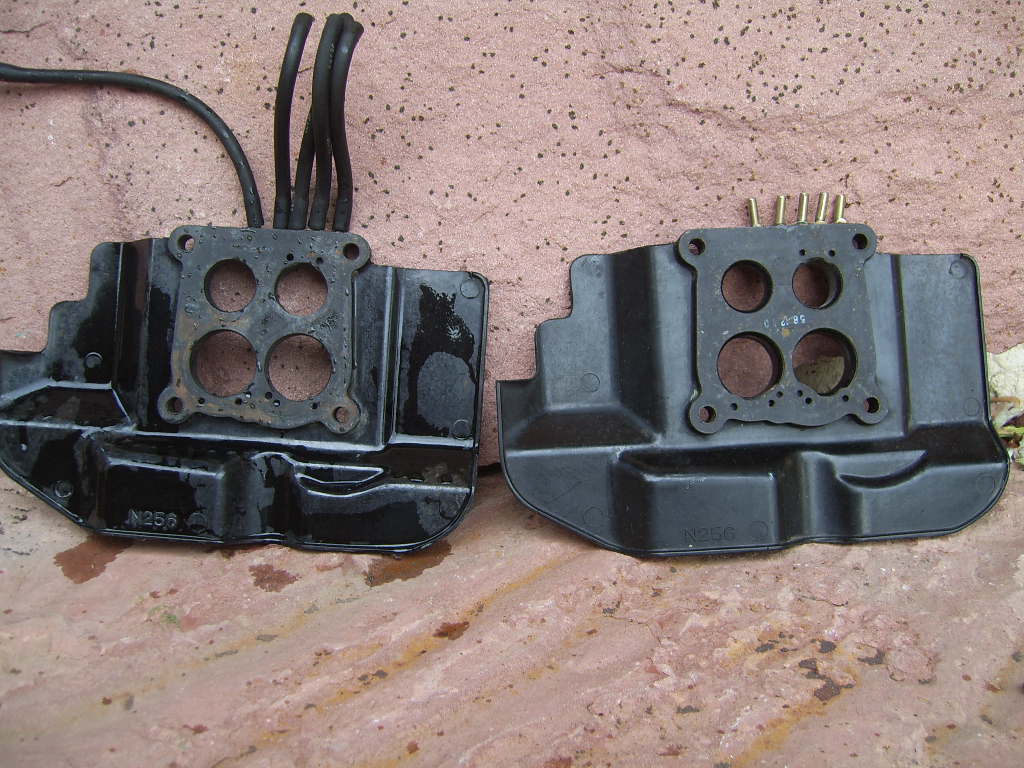

- SV100261.JPG (164.38 KiB) Viewed 2035 times
Re: carb spacer plate
Thank-you for the quick response and what a beautiful engine! What I actually need to see is the underside of the carburetor spacer plate though. Could you post one of that please?
-
spirit r
- VIP User
- Posts: 1895
- Joined: Sat Feb 09, 2013 4:15 pm
- Location: Germany Black Forest
- Has thanked: 476 times
- Been thanked: 253 times
- Contact:
Re: carb spacer plate
Sorry took the wrong picture!burton302 wrote:Thank-you for the quick response and what a beautiful engine! What I actually need to see is the underside of the carburetor spacer plate though. Could you post one of that please?

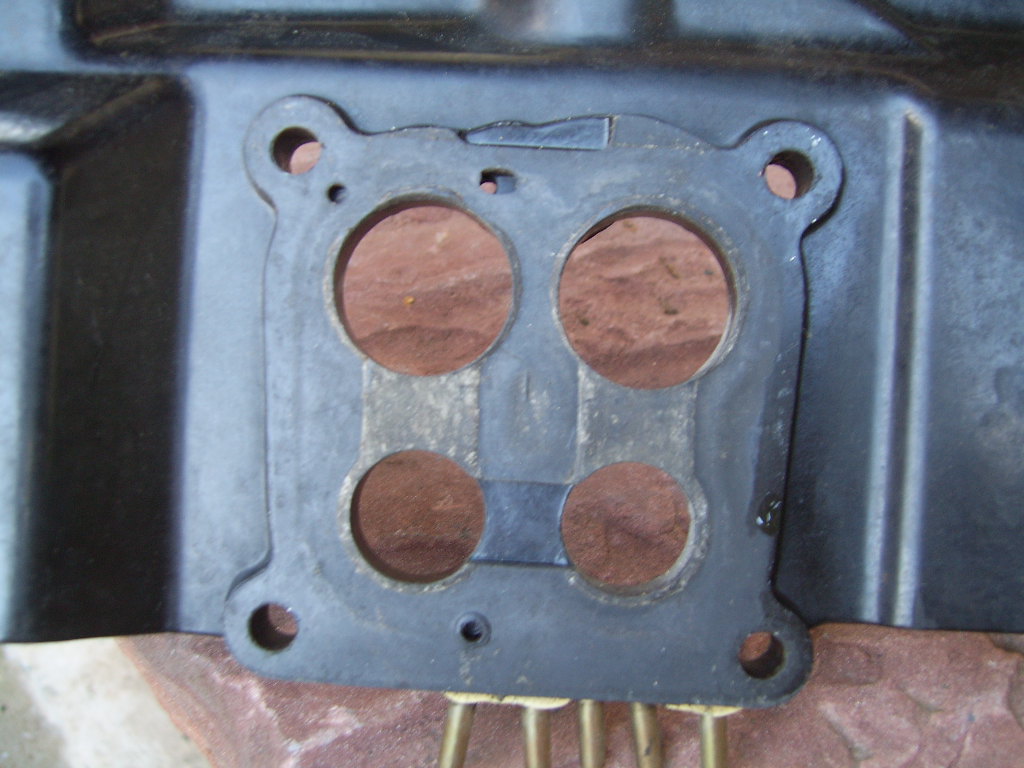

- SV100406.JPG (173 KiB) Viewed 2020 times
